7.5 x 3m Office with kitchenette/WC

Description

 7.5 x 3m Office with Kitchenette and WC – Modular Shipping Container Workspace

This prefabricated modular unit provides a self-contained office space with approximately 22.5 square meters of interior floor space. Constructed from a modified high-grade steel shipping container, this unit is engineered to serve as a permanent or temporary workspace. It includes a partitioned kitchenette area and a separate WC compartment, offering a complete solution for on-site administrative needs . The design prioritizes functionality and durability for various professional environments .

Key Features

• Integrated Layout: The 7.5-meter length is configured to include a main office area, a designated kitchenette for breaks, and a private WC compartment, optimizing workflow and convenience within a single unit .

• Durable Steel Construction: Built with a Corten steel frame, the structure is designed to withstand harsh site conditions, providing resistance to corrosion and impact . The base frame utilizes mild steel sections with a protective coating .

• Thermally Efficient Core: Fitted with insulated sandwich panels (such as PUF, EPS, or Rockwool) in the walls and roof, the interior is regulated to maintain comfortable working temperatures in diverse climates .

• Pre-finished Interior: The interior surfaces are finished with durable, low-maintenance materials. Flooring options typically include marine plywood with vinyl or tile finishes, while walls are finished with materials like MDF, gypsum board, or coated steel sheet .

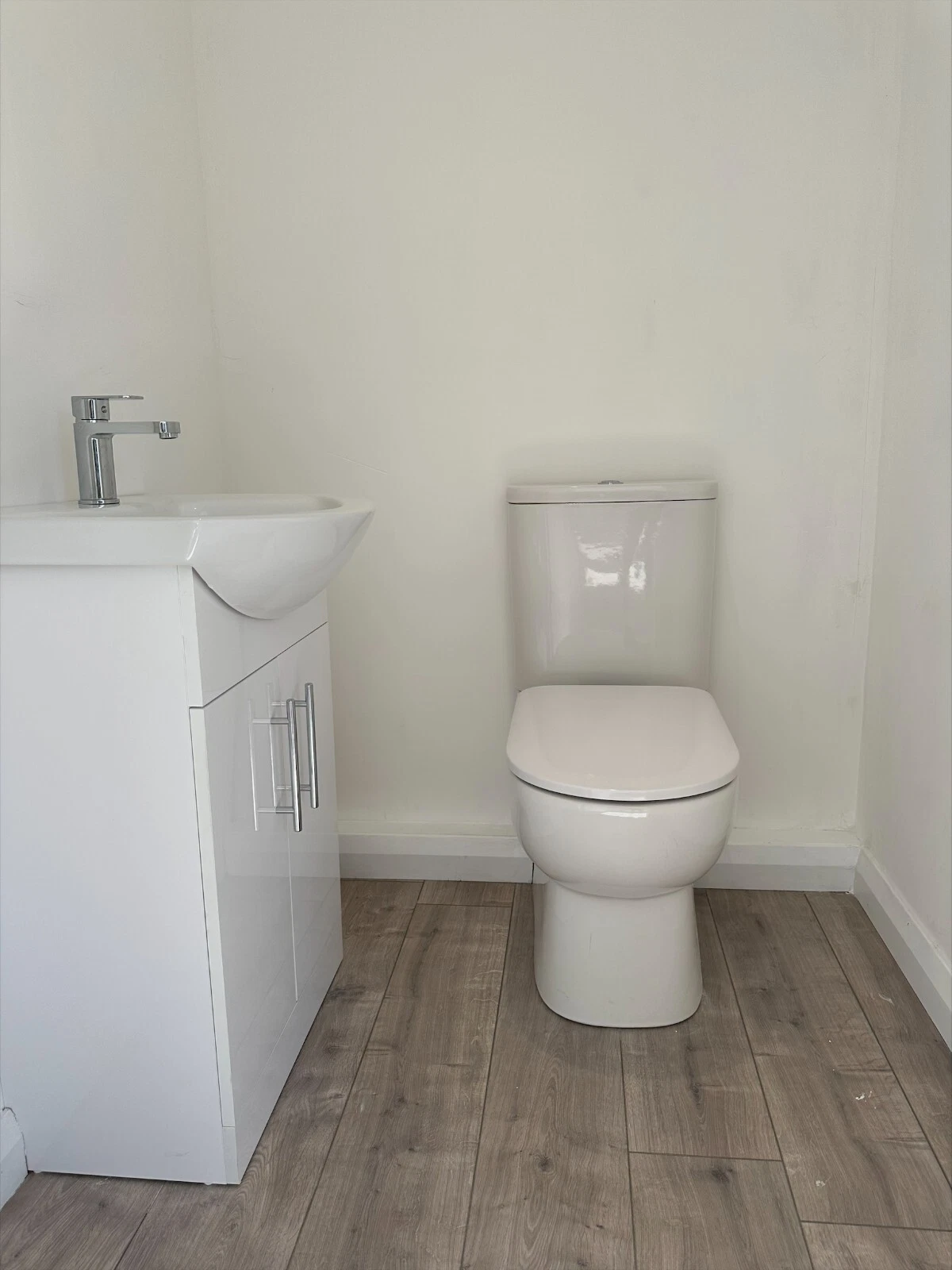

• Separate Wet Areas: The WC compartment is constructed with a raised floor to accommodate plumbing traps and connections. It is fitted with a toilet, vanity unit, and an exhaust fan for proper ventilation . The kitchenette area is prepared for sink installation and appliance setup.

• Electrical Preparedness: The unit is pre-wired with a consumer unit (distribution board) and internal lighting (LED panels). Electrical inlets are positioned for straightforward connection to mains power or a generator .

• Modular and Portable: Designed with integrated corner castings, the unit can be easily transported via flatbed truck and lifted into place by a crane. Units can also be stacked vertically or placed side-by-side to create larger complexes .

Detailed Description

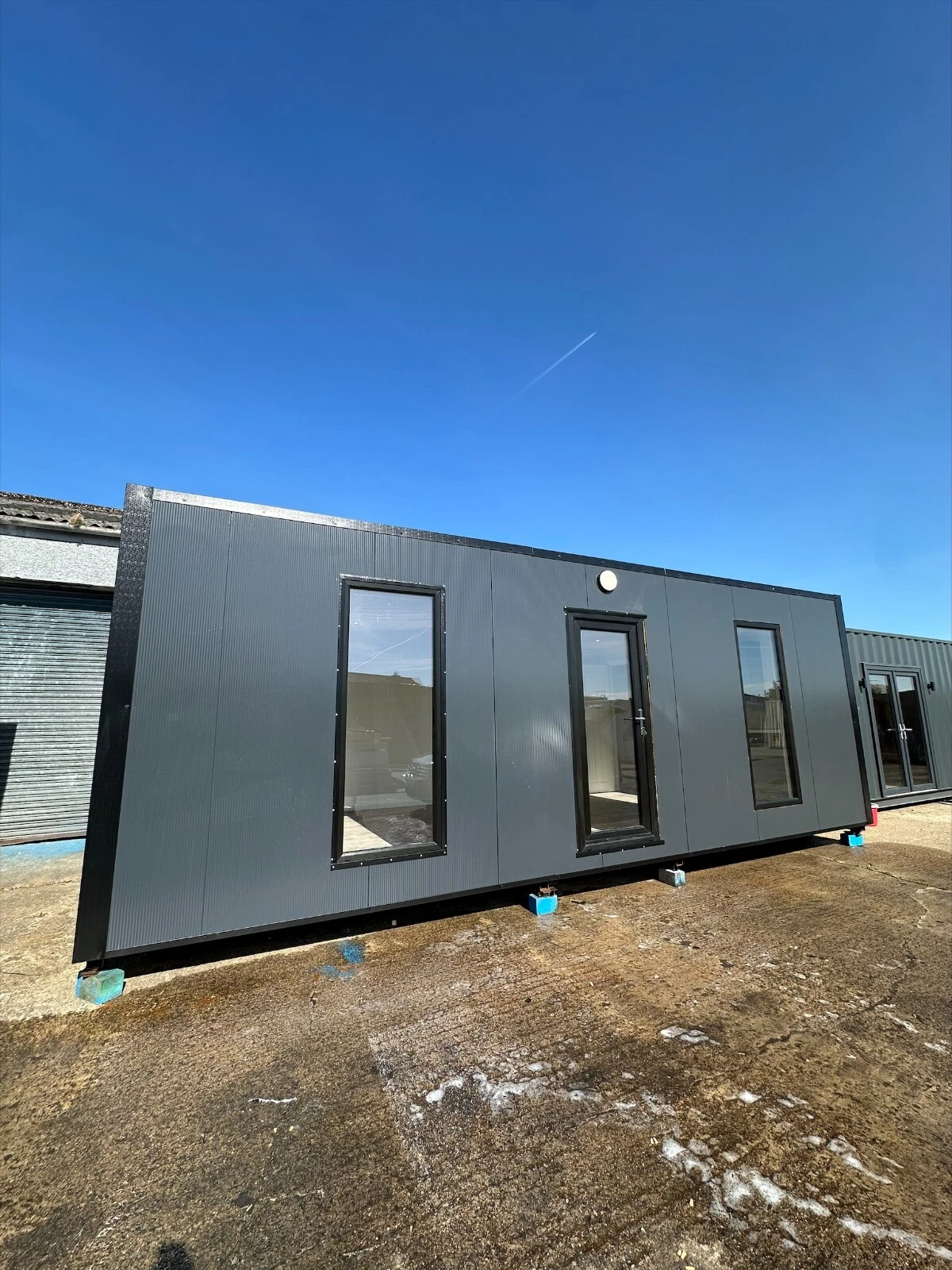

The 7.5 x 3m Office with Kitchenette/WC is a purpose-built conversion of a standard shipping container, transformed into a fully operational remote workspace. The process begins with a structurally sound container frame, which is then modified to include precisely cut openings for windows and doors, reinforced to maintain the unit’s structural integrity .

Thermal comfort and acoustic performance are addressed through the installation of high-density insulation within the steel walls and roof. This layer is essential for regulating the interior temperature, preventing the heat gain common in metal structures during summer and retaining warmth during colder months . Following insulation, the interior is clad with durable wall panels, creating a clean, professional appearance suitable for an office environment. All electrical cabling for lighting and power outlets is run either concealed within the walls or surface-mounted in durable conduit .

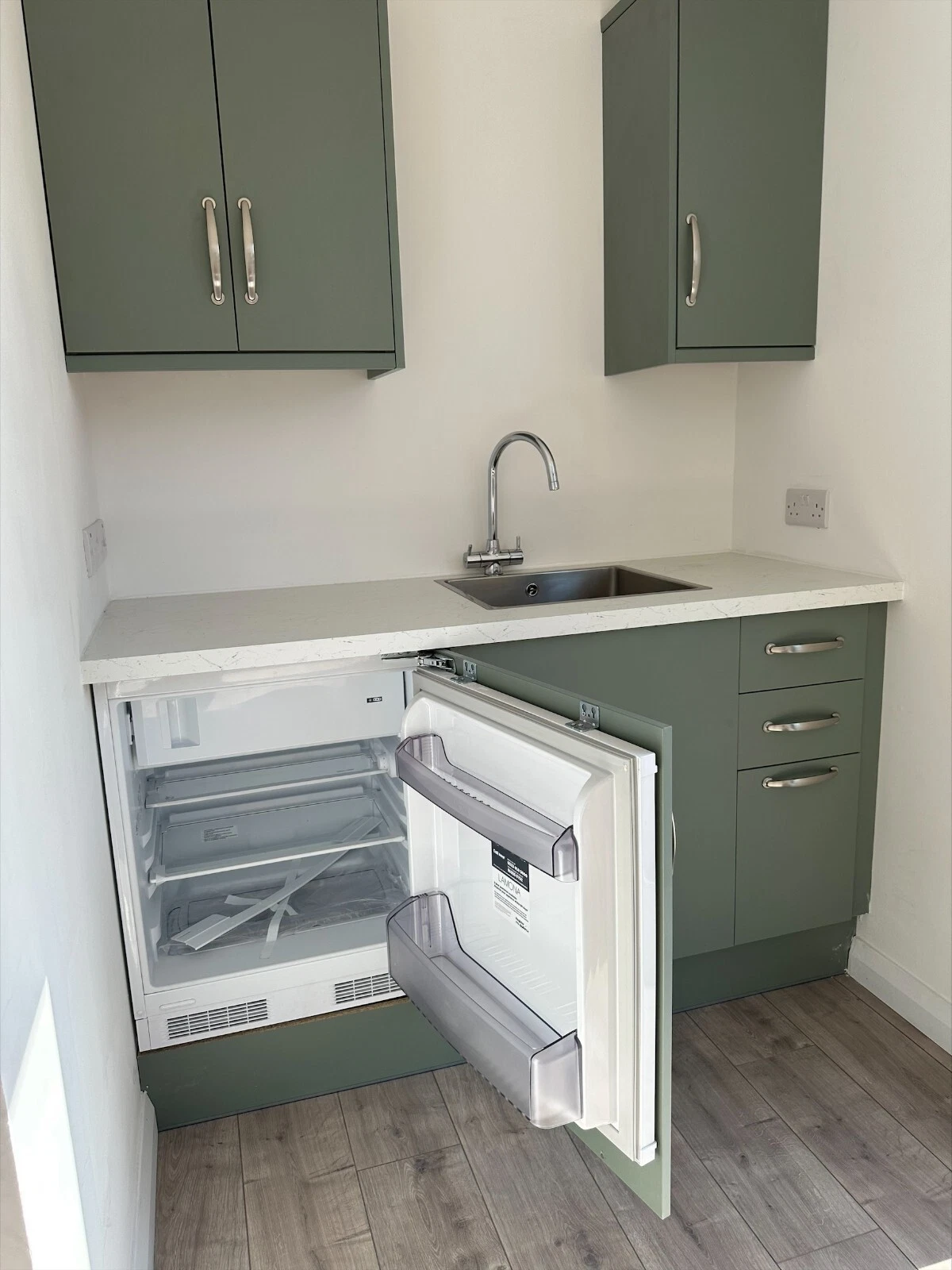

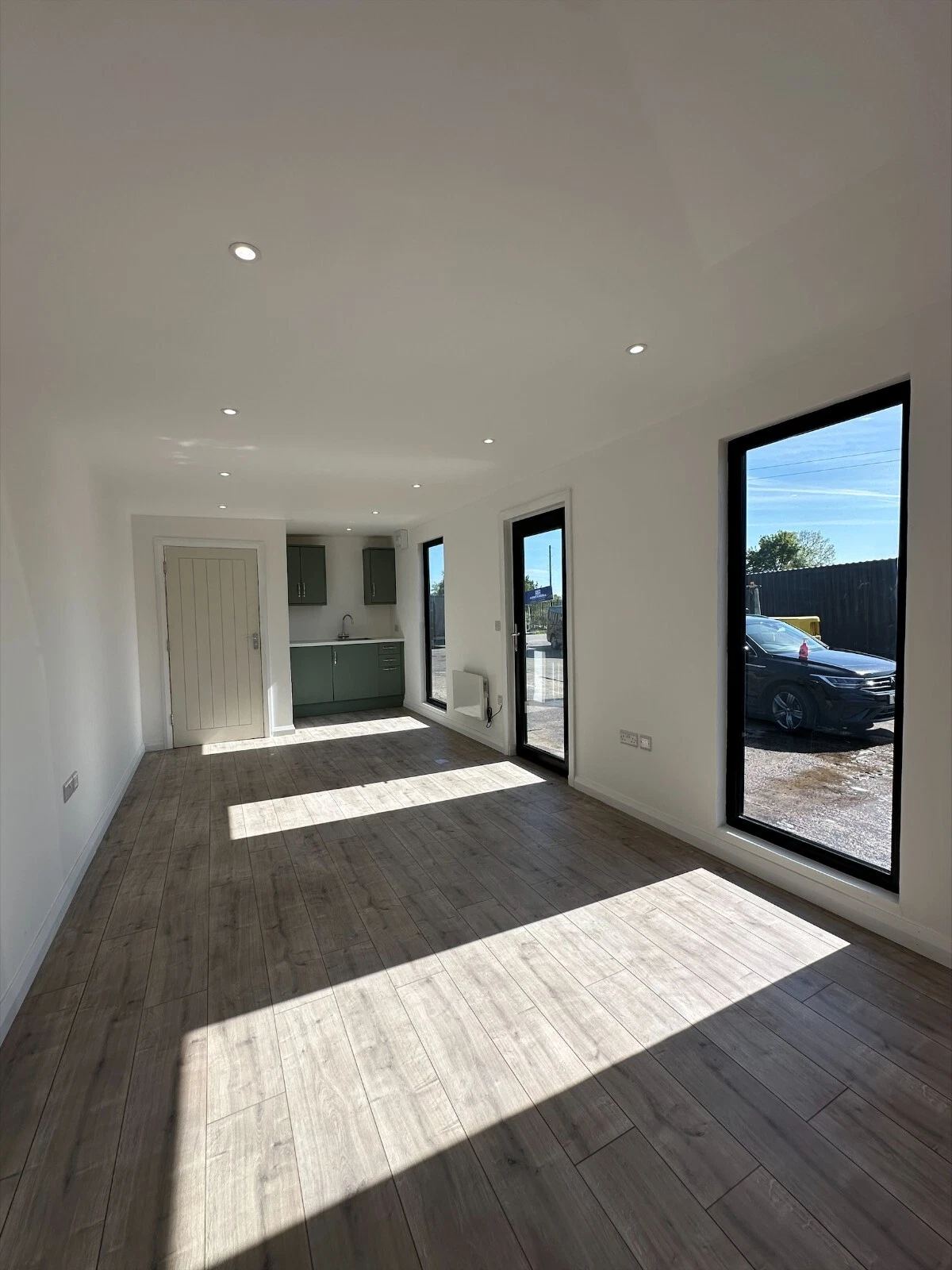

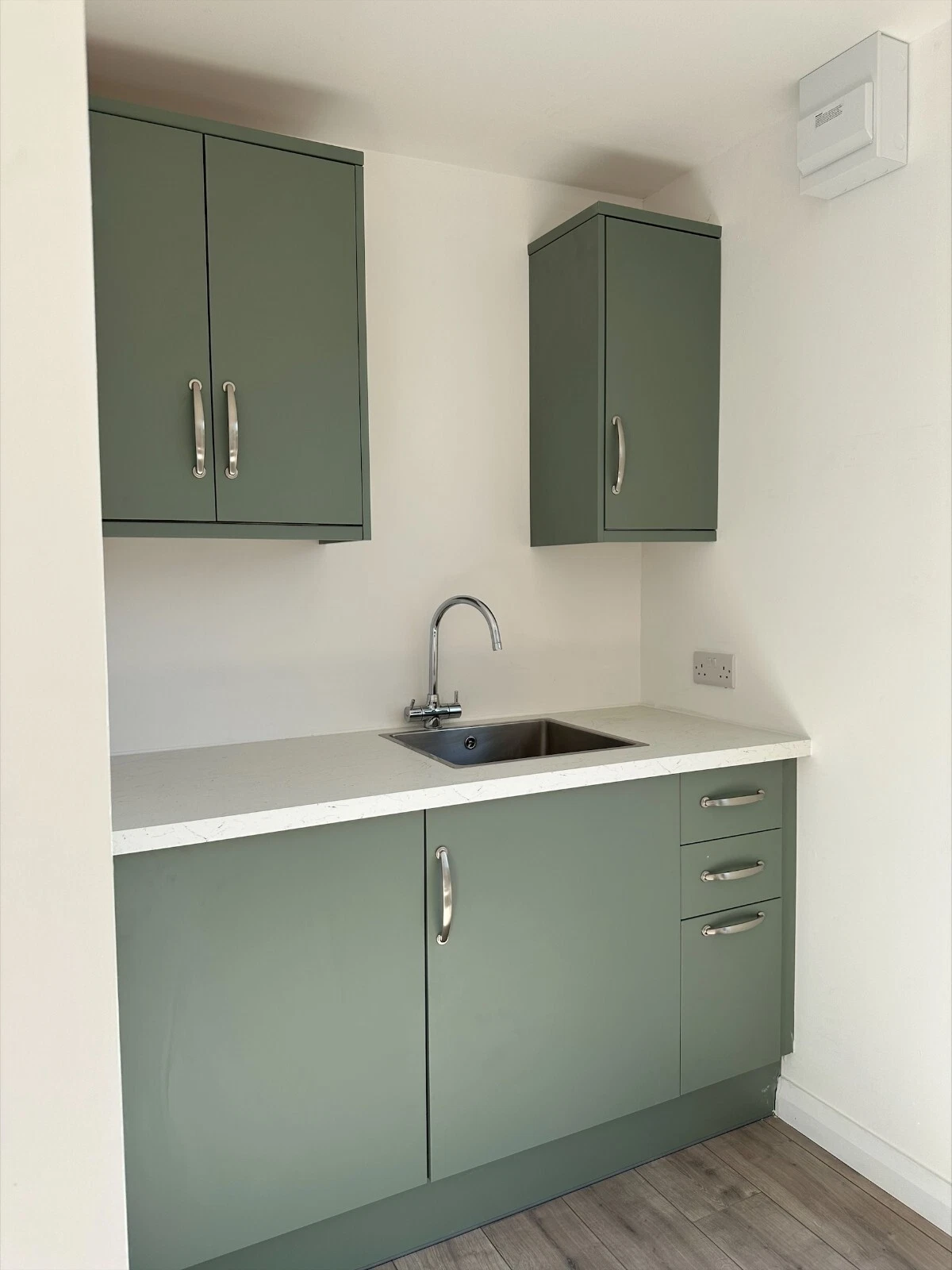

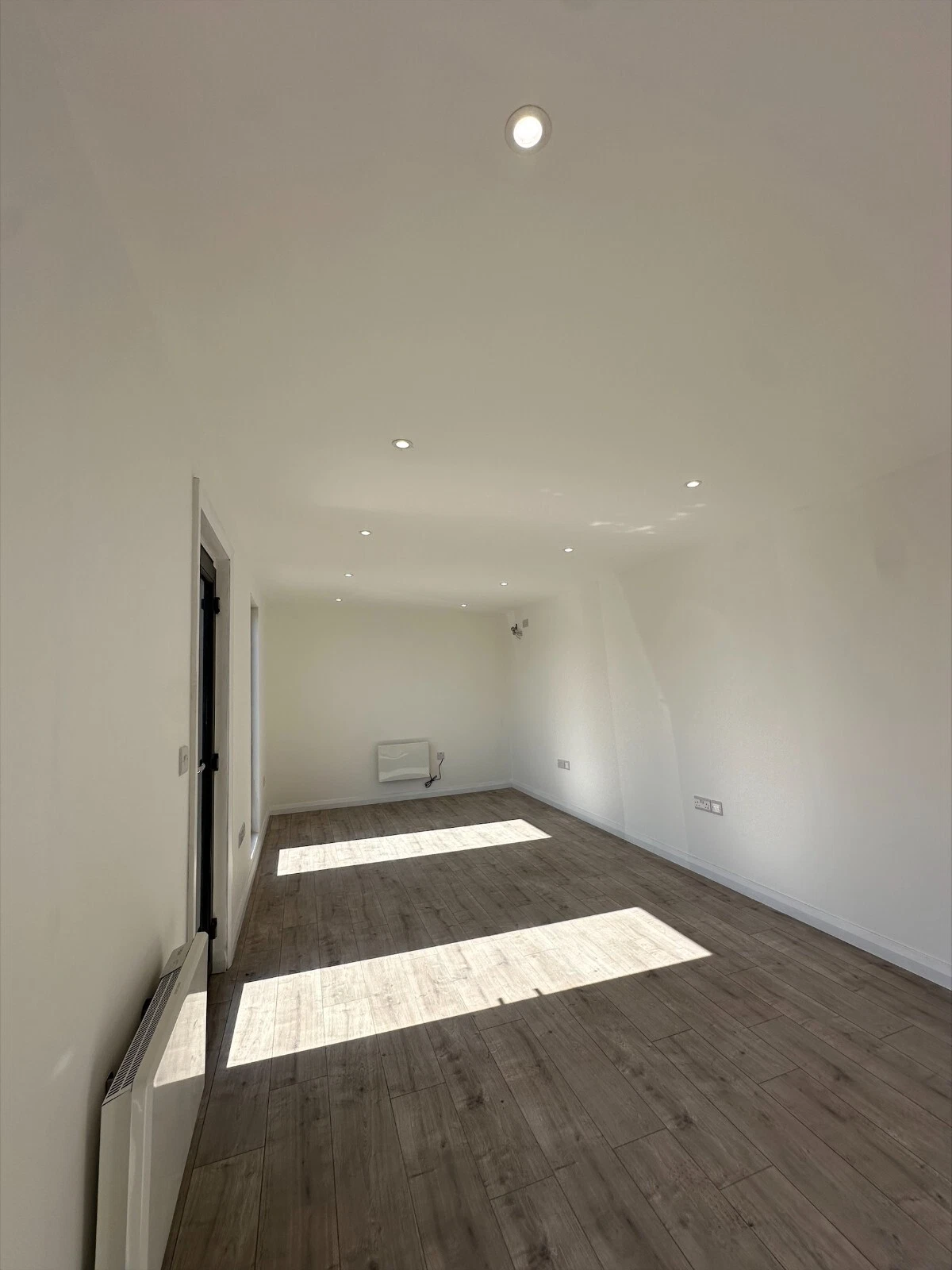

The internal partitioning creates distinct functional zones. The main office area offers ample space for a desk, filing cabinets, and meeting chairs. The kitchenette area is equipped for a sink, a under-counter refrigerator, and a microwave or sandwich press, allowing staff to prepare food and drinks without leaving the site . The separate WC room is fully enclosed for privacy and features a flushing toilet and a vanity sink. Plumbing lines are pre-installed and grouped to exit the unit at a single point, simplifying the connection to external water and waste systems . Windows are incorporated into the design to provide natural light and ventilation, with some configurations including internal blinds for privacy .

Technical Specifications

• External Dimensions (L x W x H): 7.5 m x 3.0 m x 2.9 m (High Cube variant)

• Internal Area: Approx. 22.5 m²

• Structural Material: Corrosion-resistant Corten steel frame and cladding

• Flooring: Marine-grade plywood with anti-skid vinyl or tile finish

• Wall & Roof Panels: Pre-finished insulated sandwich panels (thickness options: 40mm-100mm)

• Insulation Type: PUF / EPS / Rockwool (dependent on specification)

• Doors: Secure metal-clad external door(s) with lockable handles; Internal flush doors for WC

• Windows: Powder-coated aluminum or UPVC sliding windows with mosquito mesh

• Electrical System: Distribution board (DB) with MCBs; Internal LED lighting; Power outlets; External inlet point

• Plumbing: Pre-installed CPVC/PPR water lines and waste pipes configured for external connection

• Standard WC Fit-out: Flushing toilet, vanity unit with tap, towel rail, exhaust fan

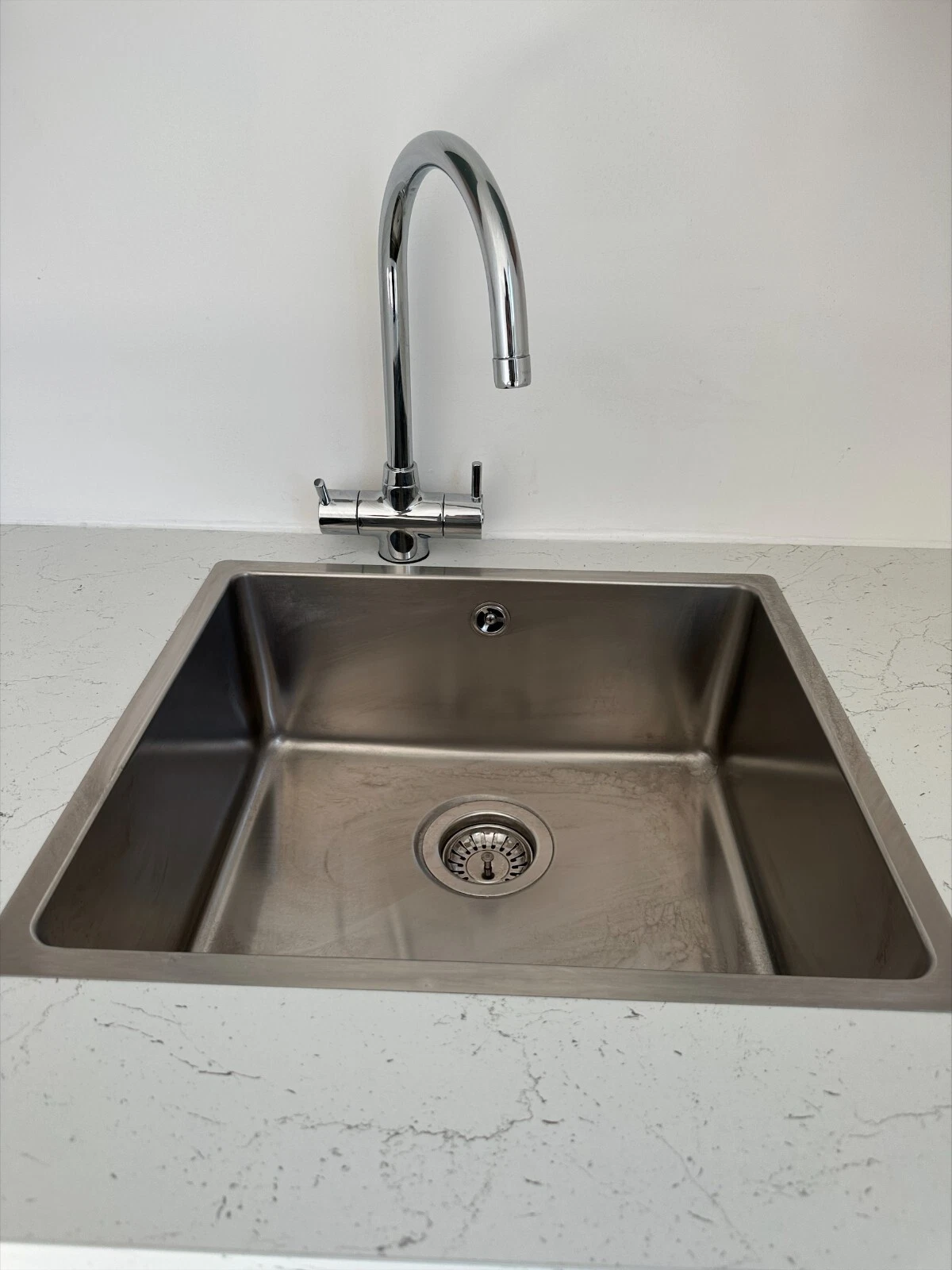

• Standard Kitchenette Prep: Sink drain point; Hot/Cold water supply lines; Space and connections for appliances

Compatibility / Intended Use

This unit is designed for a wide range of professional applications where a durable, secure, and weather-resistant office is required . It is particularly suited for:

• Construction & Mining Sites: Providing on-site project management offices, site clerk cabins, and welfare facilities for crews in remote locations .

• Industrial & Manufacturing Facilities: Serving as a secure administrative office, security checkpoint, or control room within a factory or plant environment .

• Agriculture: Acting as a centralized field office for farm management, equipment storage, and record-keeping .

• Commercial Use: Functioning as a ticket booth, reception kiosk, or a small satellite office for businesses requiring a temporary or semi-permanent presence .

Package Includes

• One (1) modified 7.5m x 3m shipping container structure as specified.

• Factory-installed internal partitions creating office, kitchenette, and WC zones.

• Pre-fitted internal wall and ceiling linings with finished surfaces.

• Installed flooring throughout.

• Pre-hung external entry door and internal WC door.

• Installed window units.

• Complete electrical installation: internal lighting, power sockets, and distribution board.

• Complete rough-in plumbing for kitchen sink and WC, including water and waste lines .

• Standard sanitary fixtures: toilet and vanity unit.
