53 High Cube Steel Shipping Container

Description

Product Description

53 High Cube Steel Shipping Container

This 53-foot High Cube steel shipping container is offered as a durable and standardized storage or transport solution. Constructed from COR-TEN steel, it is designed to withstand the elements and provide secure containment for a variety of applications. Its high cube designation provides an additional foot of vertical space compared to a standard container, offering greater internal volume.

Key Features

• High cube design provides 12 inches of additional interior height.

• Constructed from weather-resistant COR-TEN steel for structural integrity.

• Designed with a standard double-door configuration on one end.

• Features a plywood floor for a stable interior surface.

• Equipped with lockable door handles to accommodate standard security seals.

• Manufactured to meet industry-standard external dimensions for transport.

Detailed Description

The 53 High Cube Steel Shipping Container is a unit commonly utilized in intermodal freight transport and large-scale storage applications. Its construction from COR-TEN steel, a material recognized for its tensile strength and weathering characteristics, is a standard practice in the industry. As the material weathers, a protective patina forms on the outer surfaces, which is intended to reduce the rate of corrosion and extend the container’s service life in outdoor environments.

A defining characteristic of this unit is its classification as “High Cube.” This specification indicates that the container possesses an external height of 9 feet 6 inches, resulting in a significant increase in interior cubic capacity relative to a standard 8-foot 6-inch container. This additional volume can be a critical factor for storing tall equipment, large machinery, or maximizing palletized goods storage.

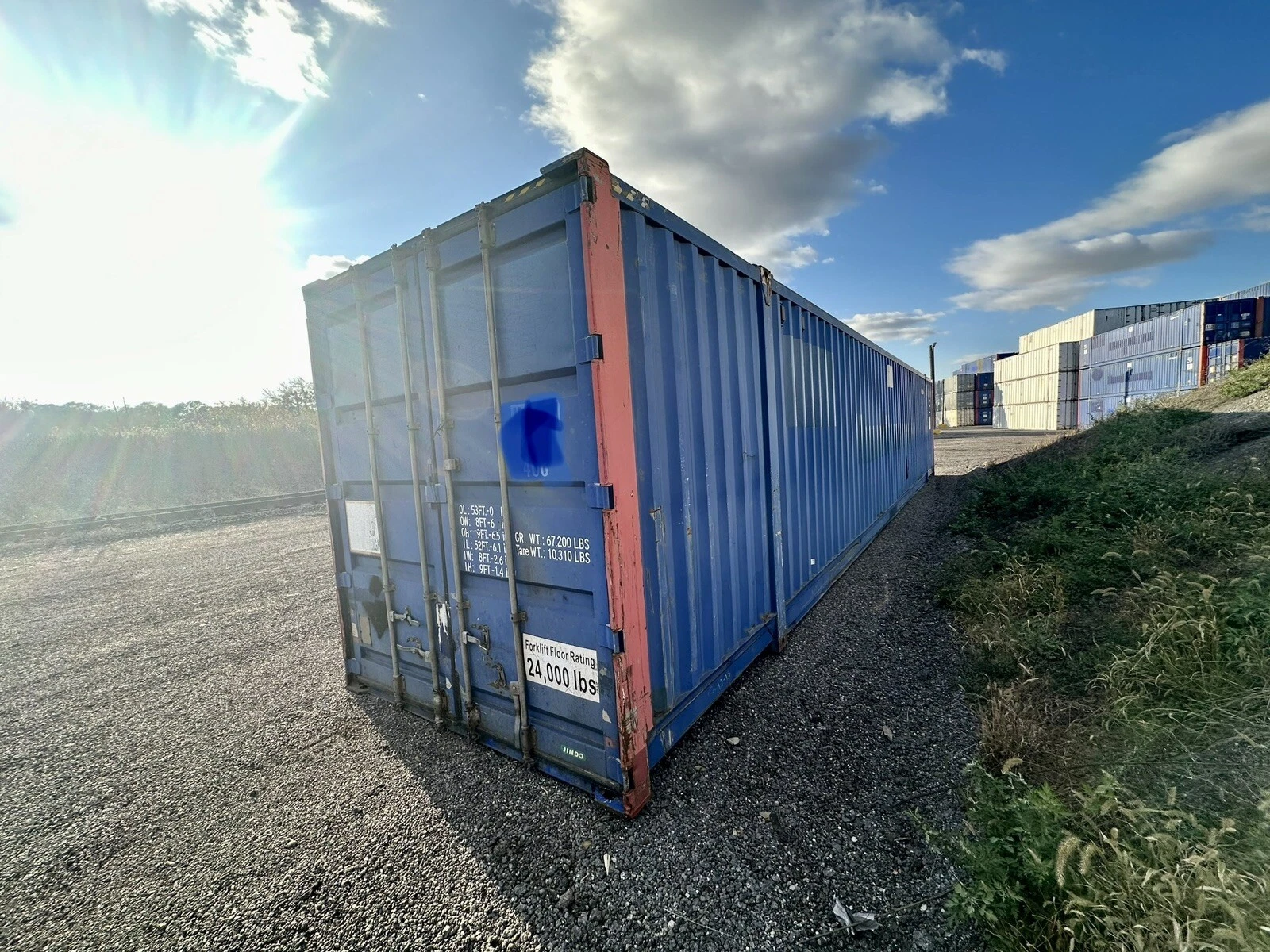

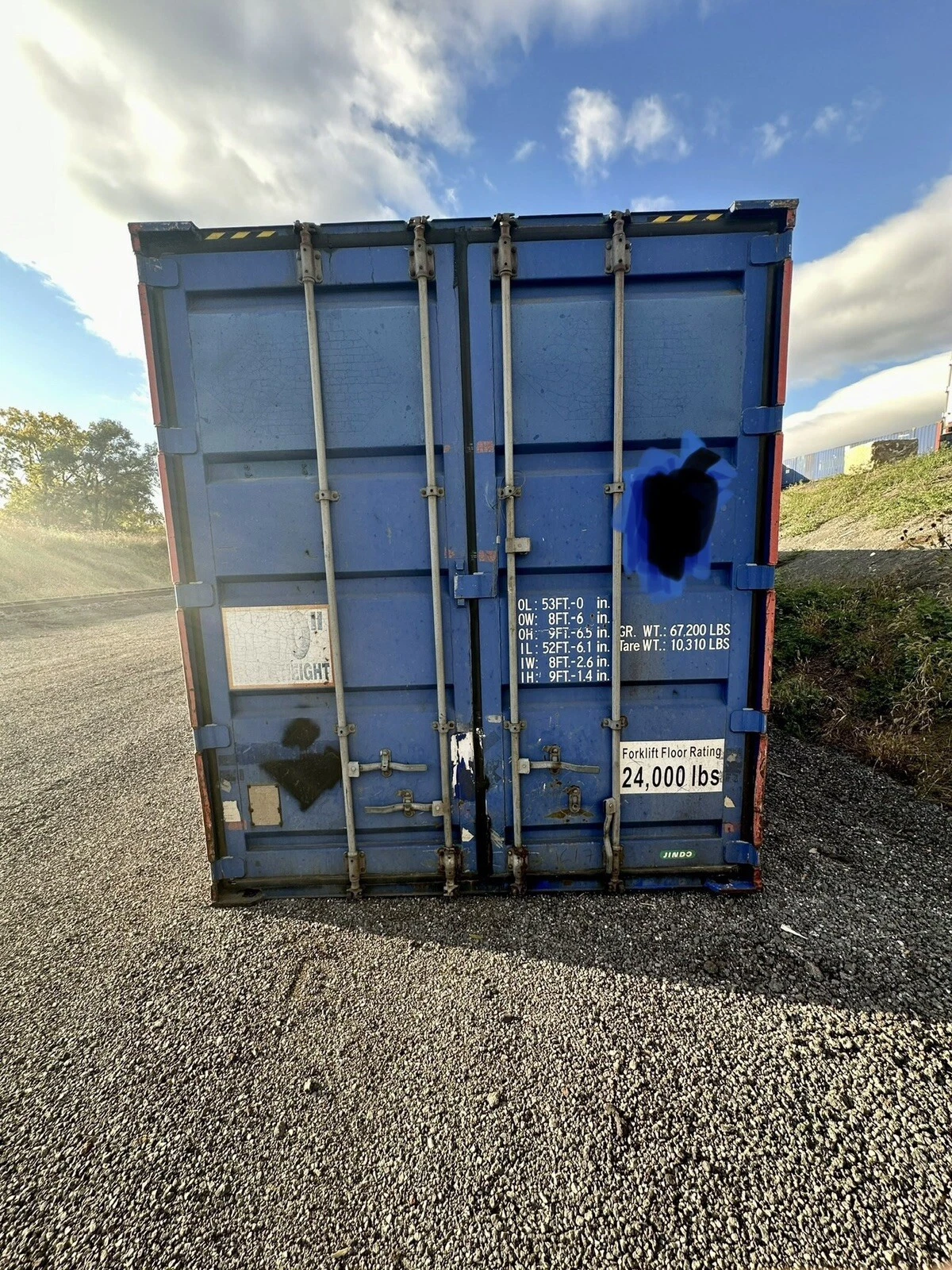

The container is fitted with a pair of weather-resistant swing doors at one end. These doors open to the full width and height of the container’s interior, allowing unobstructed access for loading and unloading. The door mechanisms are designed to be secured with a locking bar system, which can accommodate various types of tamper-indicating seals or padlocks.

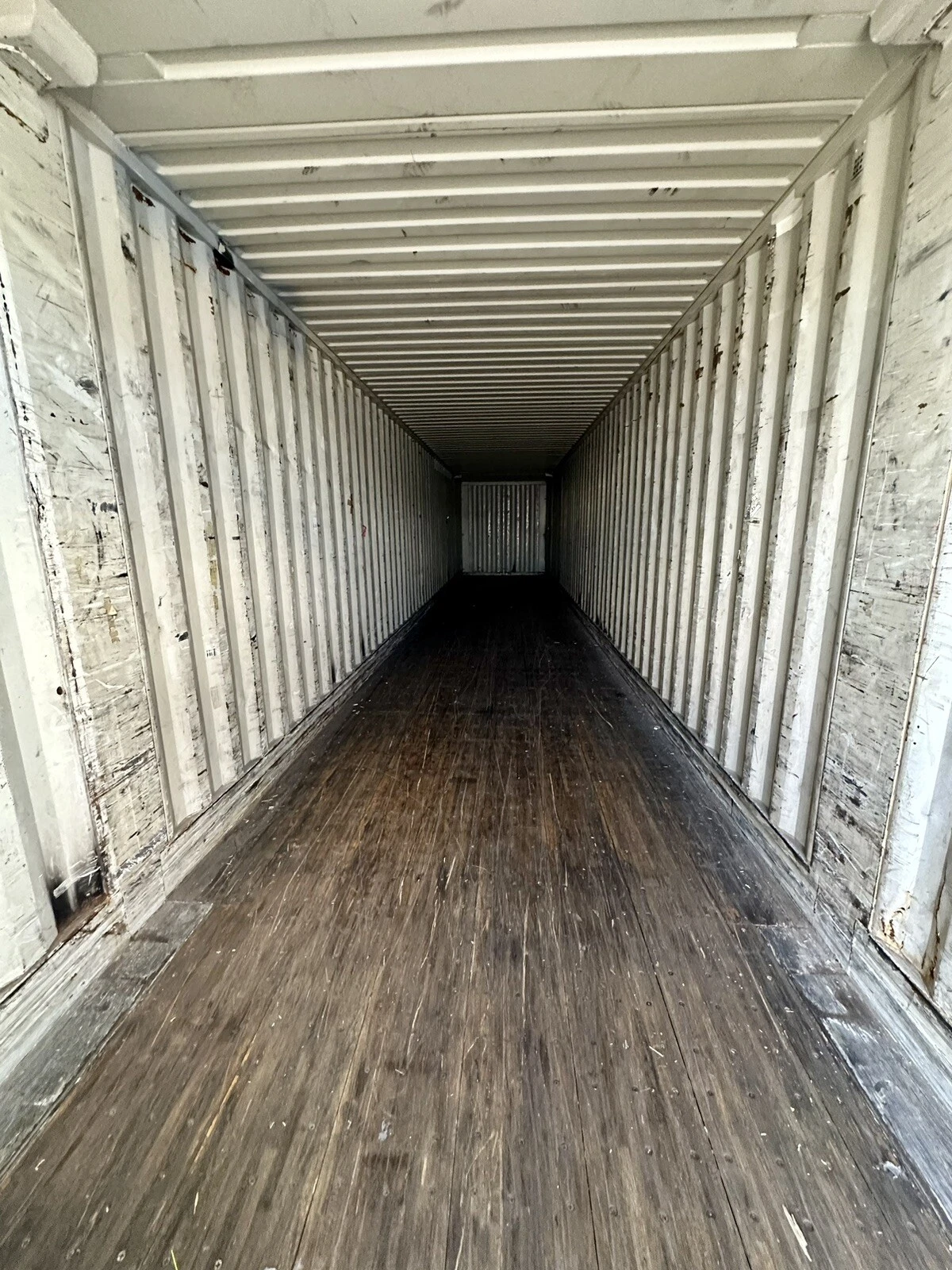

Internally, the container is finished with a marine-grade plywood floor, which is treated to resist moisture and provides a durable, flat surface. The interior walls are constructed from the corrugated steel of the container body, offering inherent structural strength. While the container is designed to be weather-resistant, it is not a hermetically sealed unit. Ventilation is typically provided by passive vents located at the top corners of the container to minimize condensation buildup during transport and storage.

Technical Specifications

• External Dimensions (L x W x H): 53 ft x 8 ft 6 in x 9 ft 6 in (16.15 m x 2.59 m x 2.89 m)

• Internal Dimensions (L x W x H): 52 ft 6 in x 7 ft 8 in x 8 ft 10 in (16.00 m x 2.34 m x 2.69 m)

• Door Opening Width: 7 ft 8 in (2.34 m)

• Door Opening Height: 8 ft 5 in (2.57 m)

• Maximum Gross Weight: 67,200 lb (30,480 kg)

• Tare Weight: Approximately 10,000 lb (4,536 kg)

• Payload Capacity: Approximately 57,200 lb (25,944 kg)

• Material: COR-TEN weathering steel

• Flooring: Marine-grade plywood

• Color: Standard shipping container green or brown (may vary based on current inventory)

Intended Use

This container is suited for a variety of commercial and industrial functions. Common applications include:

• Intermodal Cargo Transport: Designed for movement via ship, rail, and truck chassis.

• Secure Storage: Suitable for on-site storage of equipment, raw materials, or finished goods at construction sites, warehouses, and industrial facilities.

• Modular Modifications: Frequently used as a base structure for modification into mobile offices, tool rooms, or site-specific enclosures. Please note that any modifications would be a secondary process and are not included with the base unit.

• Bulk Material Handling: Can be loaded from the top if access and equipment are available (top of container is structural but watertight panels are not designed for repeated open/close cycles).

Package Includes

• (1) 53 ft High Cube Steel Shipping Container
