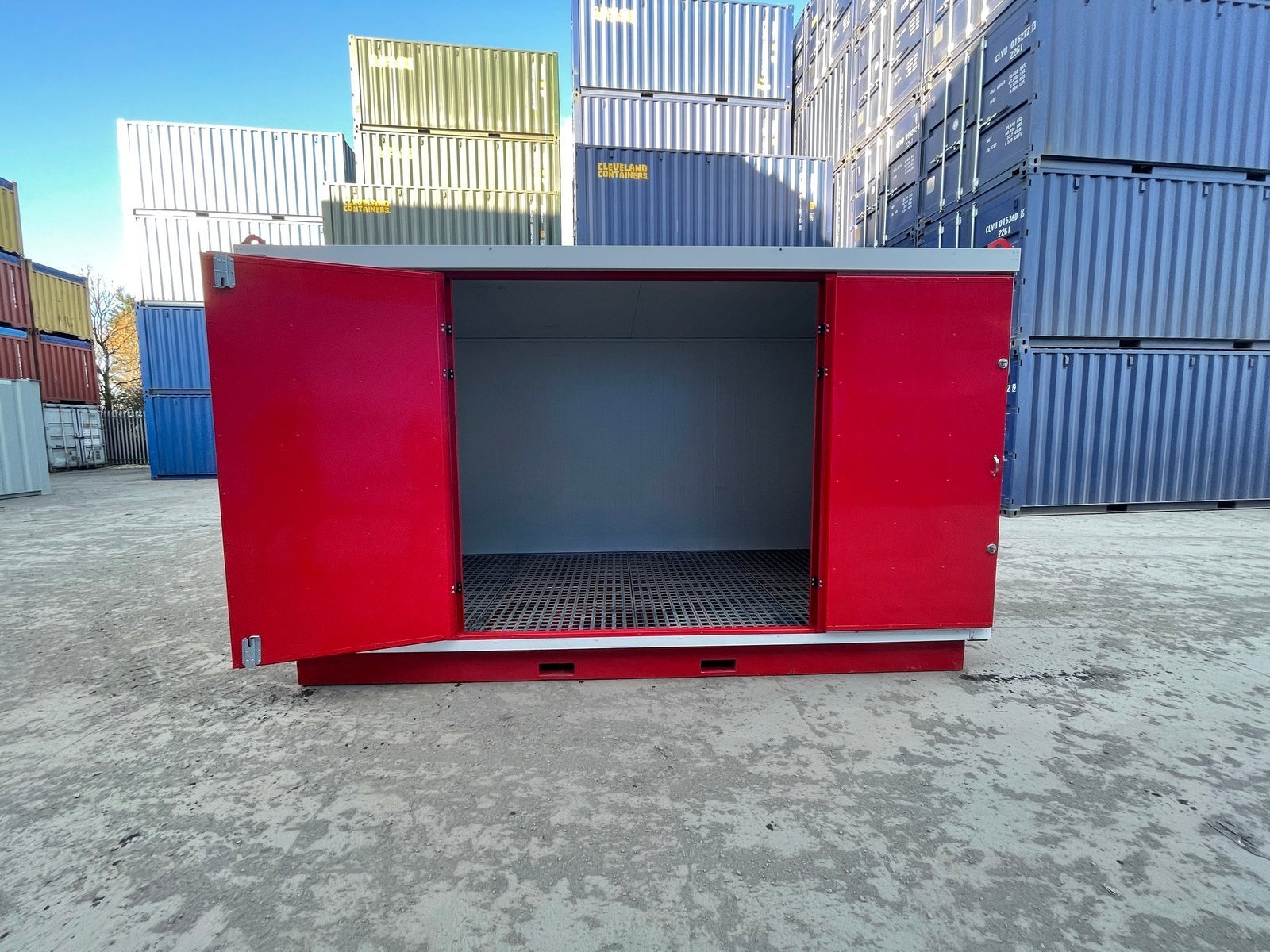

4m x 2m Insulated COSHH Flat Pack Storage Unit

Description

This heavy-duty storage unit is designed for the safe containment of chemicals, paints, oils, and other hazardous materials. It is constructed from galvanized steel with integrated insulation and is delivered in a flat-pack format for simplified transport and access to confined sites. The unit is engineered to meet rigorous safety standards for the storage of flammable and combustible liquids .

Key Features

• Insulated Double-Skin Construction: Features double-skinned galvanized steel walls with integrated fire-resistant insulation. This design is intended to prevent internal condensation and provide protection against external temperature fluctuations, helping to maintain a stable interior environment .

• Integrated Spill Containment (Bund): The floor is constructed as a open steel grate suspended over a integrated bunded sump. In the event of a container leak or spillage, the liquid is directed away from stored items and contained within the sump to help prevent environmental contamination .

• High-Security Locking System: Equipped with heavy-duty double doors that include a 5-lever deadlock system and reinforced jambs to deter unauthorized access and theft .

• Ventilation System: Includes both high and low-level ventilation points. This promotes natural airflow through the unit, which is a critical factor in reducing the accumulation of hazardous fumes .

• Flat-Pack Design for Easy Transport: The unit is supplied as a flat pack, allowing it to be transported on a standard vehicle and maneuvered into locations with limited access where a pre-assembled container would not fit. It can be assembled on-site .

• Durable Galvanized Finish: Constructed from galvanized steel for corrosion resistance, making it suitable for long-term outdoor installation in various weather conditions .

Detailed Description

The 4m x 2m Insulated COSHH Flat Pack Storage Unit provides a secure and compliant solution for on-site hazardous material storage. It is manufactured from galvanized steel sheet, with the main body pressed for structural rigidity. The walls are of a double-skinned construction, with the cavity filled with a non-combustible insulation material. This insulation serves to decouple the internal environment from external ambient temperatures, reducing the risk of products freezing in cold weather or becoming excessively hot in direct sunlight .

Safety is a primary consideration in the unit’s design. The floor system consists of a raised, open-grille floor. Any liquid spilled from containers passes through the grille and is captured in the sealed sump basin below, keeping the stored materials dry and containing the leak . The unit is ventilated to allow fumes to disperse, which is an essential element of safe chemical storage practice .

Security is addressed through the robust door design. The double doors are fitted with a 5-lever deadlock, providing a physical barrier against forced entry. The structure is also designed with jemmy-proof joins to enhance its resistance to tampering .

A key logistical feature of this model is its flat-pack nature. It is delivered as a series of panels that are designed to be assembled on-site using basic tools. This method of delivery bypasses the access restrictions often encountered with large, pre-built containers, making it a viable option for urban sites, remote locations, or facilities with narrow entry points .

Technical Specifications

• External Dimensions (W x D x H): 3960 mm x 2075 mm x 2195 mm (approx. 13ft x 6.8ft x 7.2ft)

• Internal Dimensions (W x D x H): 3800 mm x 1920 mm x 1910 mm (approx. 12.5ft x 6.3ft x 6.3ft)

• Material: Galvanized Steel with Powder-Coated Doors

• Insulation: Fire-resistant insulated double-skin panels

• Door Configuration: Double doors with 5-lever deadlocks

• Sump Capacity: 960 Litres

• Weight: Approx. 663 kg

• Locking Mechanism: 5-lever deadlock system

• Ventilation: High and low level passive vents

Compatibility / Intended Use

This storage unit is intended for commercial and industrial applications requiring secure containment of hazardous substances. It is suitable for use in various sectors, including:

• Construction Sites: For secure storage of fuels, oils, and site chemicals.

• Agricultural Operations: For pesticides, fertilizers, and other agricultural chemicals.

• Manufacturing Facilities: For paints, solvents, and industrial process chemicals.

• Waste Management: For secure containment of hazardous waste materials.

Package Includes

• 1 x Flat-pack insulated unit panels and roof

• 1 x Pre-assembled sump floor section

• 1 x Set of double doors with 5-lever deadlocks (2 keys per lock included)

• 1 x Set of assembly hardware and instructions
