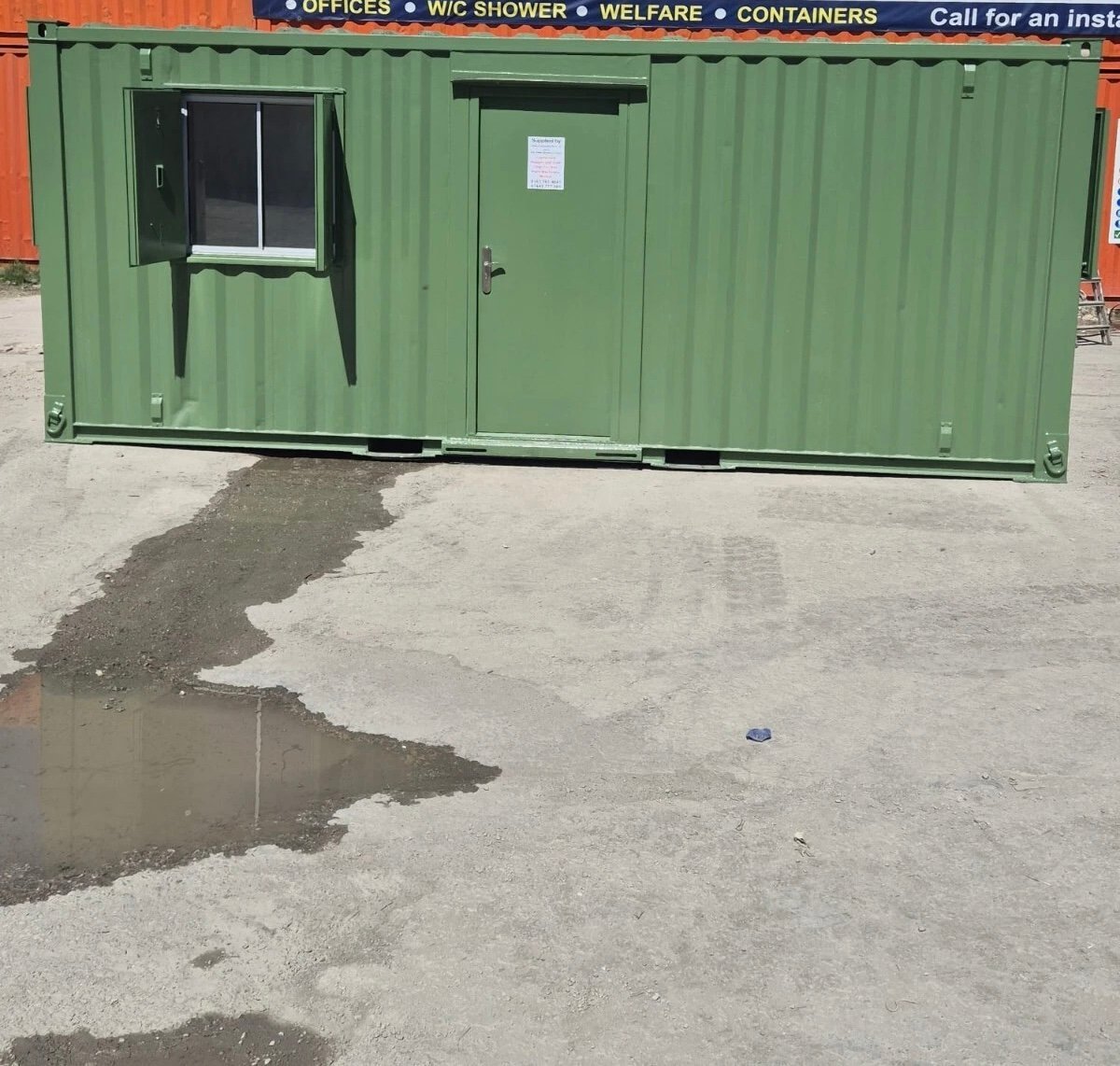

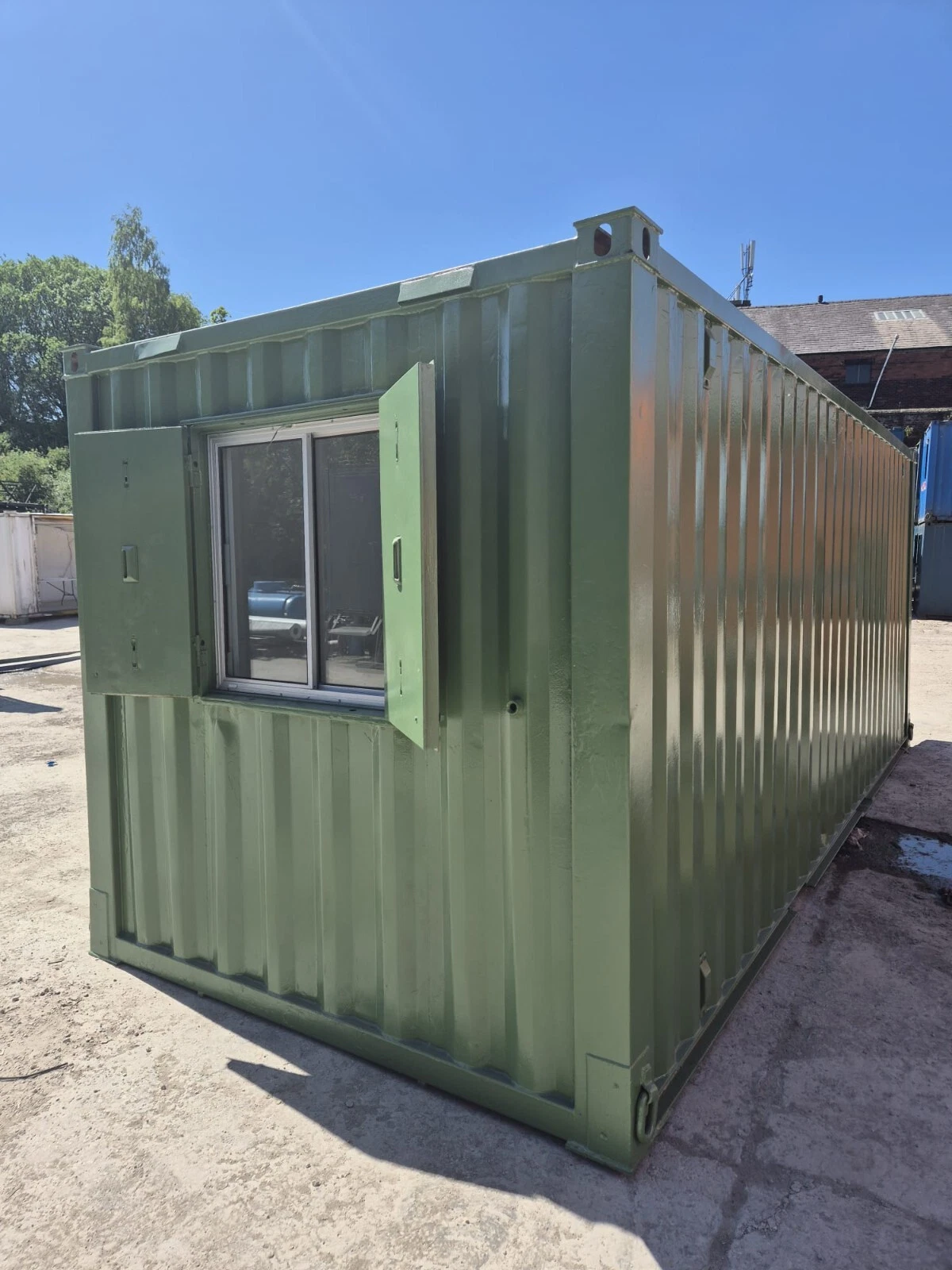

20 x 8 AV Open plan office green

Description

20 ft x 8 ft Mobile Office Container – Open Plan Workspace (Green)

This mobile office container provides a spacious and durable workspace solution, constructed from a modified high-cortEN steel shipping container. The unit features an open floor plan designed to accommodate multiple workstations, meeting areas, or site office configurations. Finished in a commercial-grade green coating, this structure is suitable for long-term installation or temporary deployment across various industries in the United States. It is delivered as a turnkey unit, ready for connection to site utilities.

Key Features

• Spacious Open Plan: The 20 ft x 8 ft layout (approximately 160 sq. ft of floor space) offers a versatile interior free of obstructions, allowing for flexible furniture arrangements .

• Durable Steel Construction: Built with a robust steel frame and COR-TEN steel walls, the structure is designed to withstand demanding site conditions and provide secure storage for equipment and personnel .

• Integrated Electrical System: The office includes a pre-wired electrical package with interior LED lighting, multiple 5-amp power sockets for office equipment, and a main breaker panel for safe power distribution .

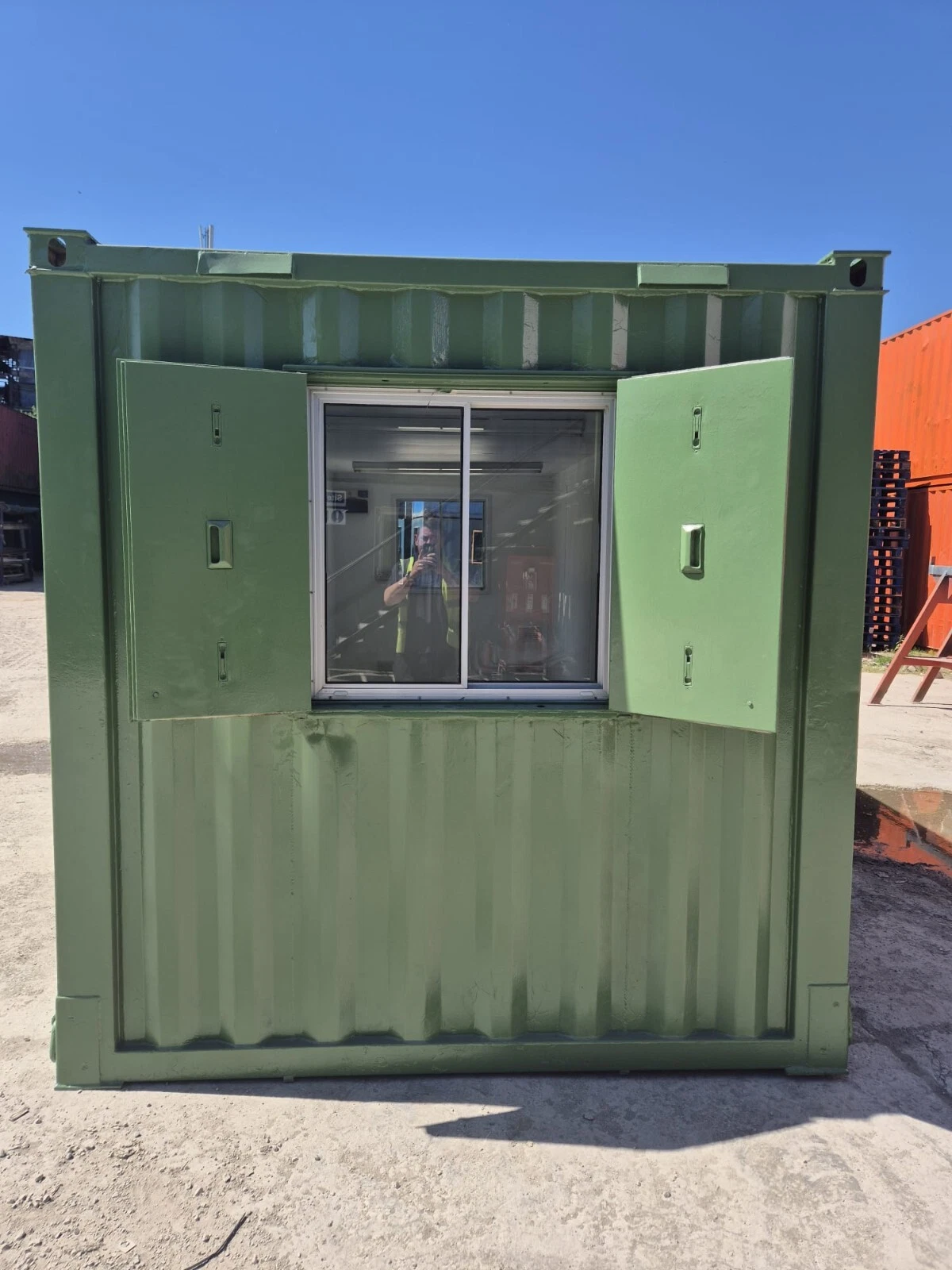

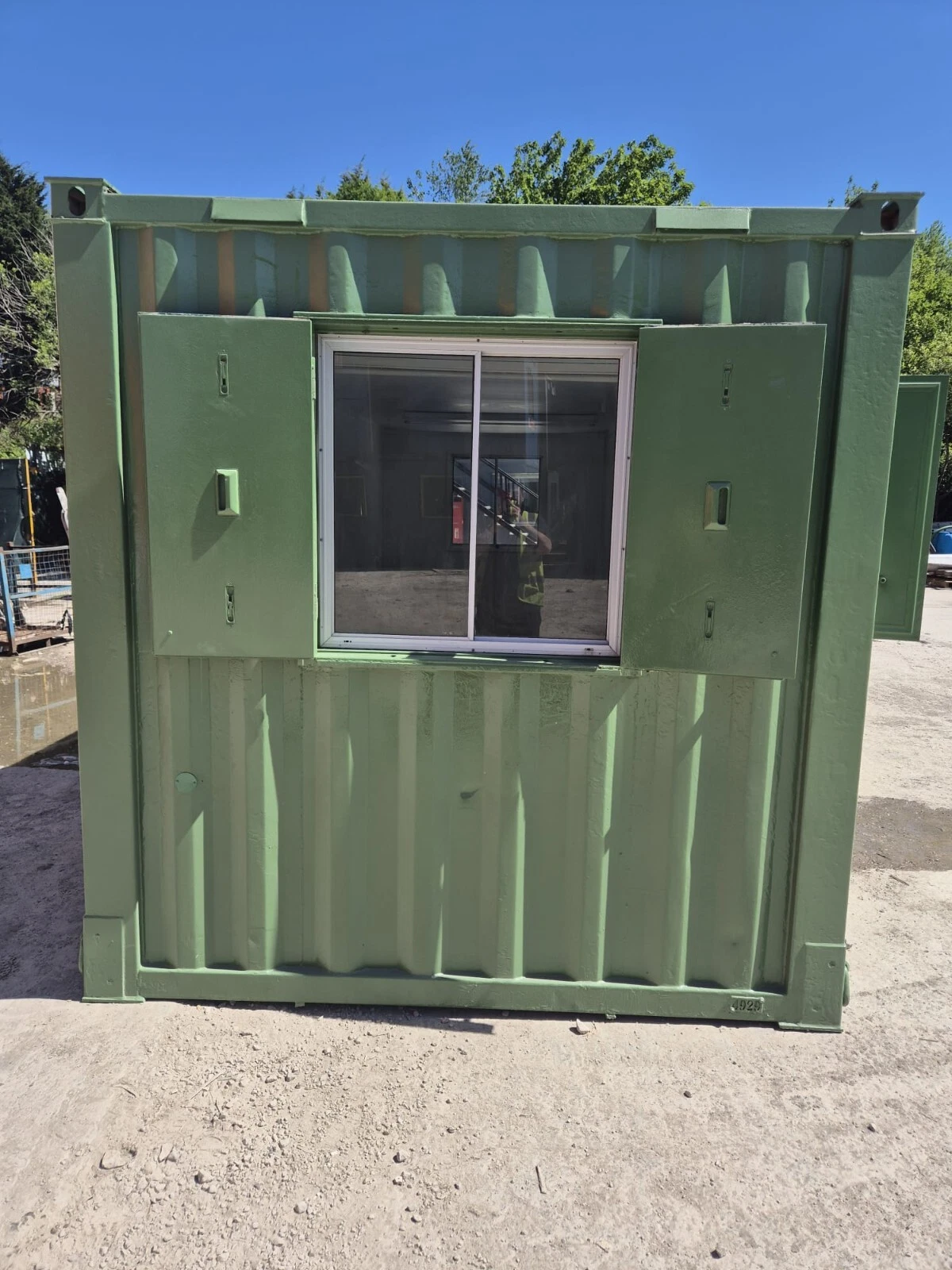

• Natural Light and Ventilation: Unit is fitted with powder-coated steel windows that operate to allow airflow and natural light, reducing the need for artificial lighting during daytime hours .

• Insulated Interior: The walls and ceiling contain non-combustible Rockwool insulation, helping to regulate interior temperatures and reduce external noise transmission .

• Mobility: Equipped with integrated forklift pockets on the base frame, the unit can be easily transported and positioned on-site using standard equipment .

Detailed Description
The 20 ft x 8 ft AV Open Plan Office Green is fabricated using modified shipping container architecture, repurposing the structural integrity of intermodal containers into functional workspace . The manufacturing process begins with a blast-cleaned steel frame and COR-TEN steel panels, which are then reinforced and cut to accommodate personnel doors and window openings.

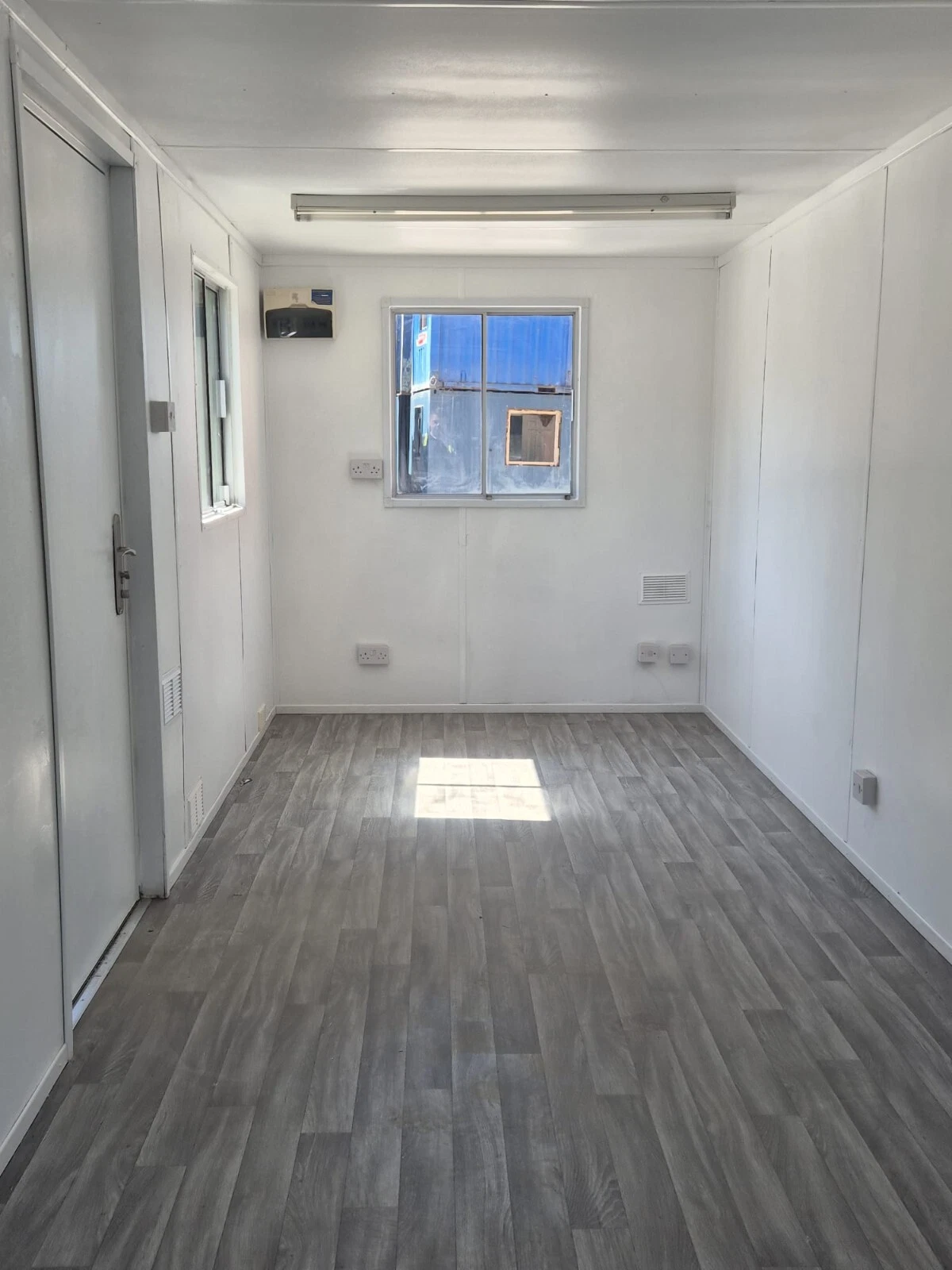

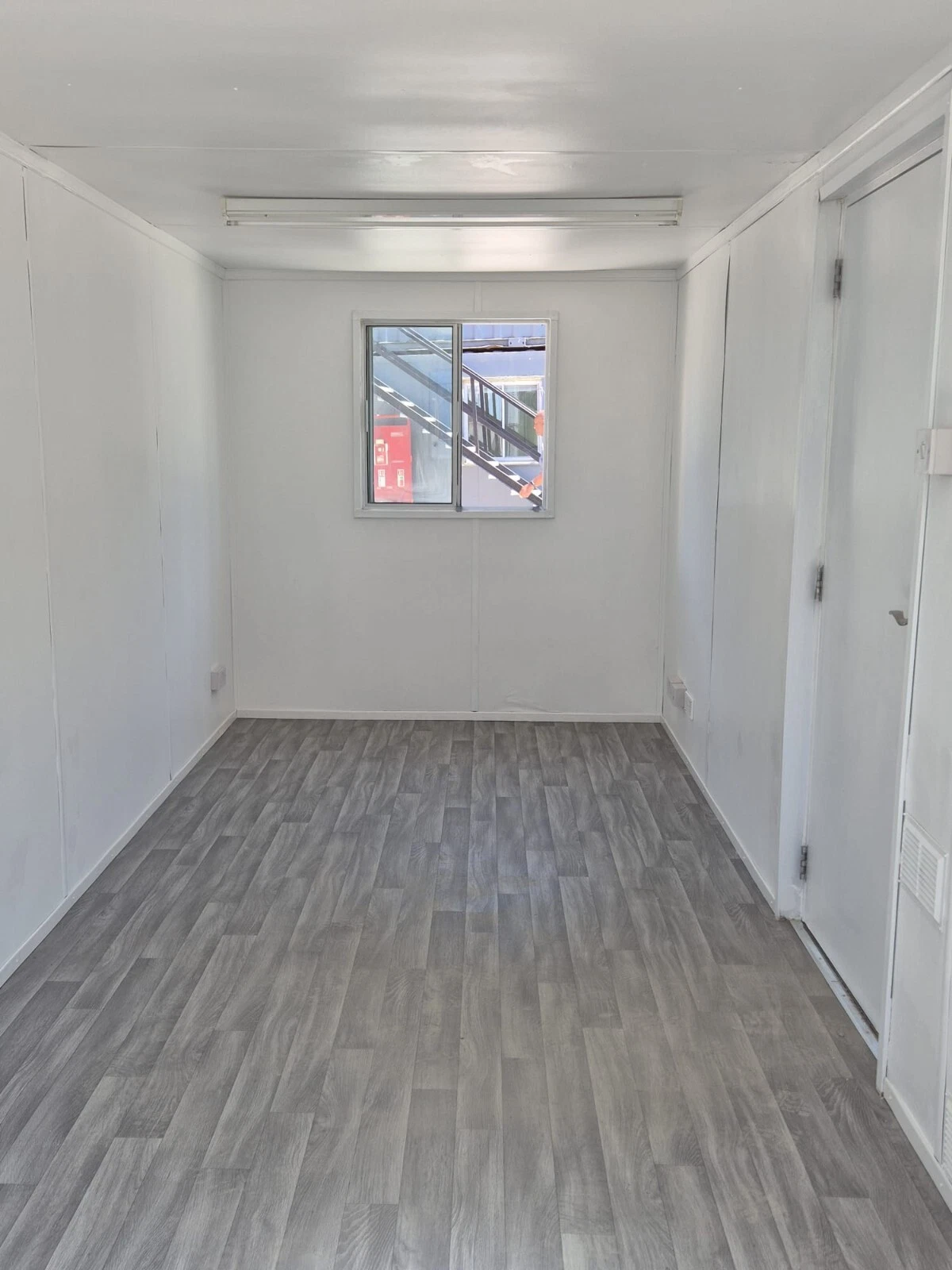

Following structural modifications, the unit is fitted with thermal insulation. Specifically, 100 mm thick rock wool is installed within the cavity of the walls and roof structure . This material provides thermal resistance and acoustic dampening. The interior walls and ceiling are finished with a durable, moisture-resistant PVC cladding or laminated chipboard, creating a bright and professional work environment .

The electrical system is installed with concealed wiring for safety and aesthetics. It includes a consumer unit with circuit breakers, fluorescent or LED tube lights, and strategically placed power outlets. Exterior lighting, activated by a photocell, is provided for safe night access . The floor system consists of a marine-grade or structural plywood subfloor, covered with a heavy-duty vinyl or epoxy coating to resist wear from foot traffic and rolling chairs .

The exterior is finished with a color-coated, commercial-grade green paint system applied over a primer. This protects the steel from corrosion and extends the structure’s lifespan in outdoor environments. All windows are fitted with safety grilles or bars as a standard security measure .

Technical Specifications

• External Dimensions (L x W x H): Approximately 20 ft x 8 ft x 8.5 ft (6.05 m x 2.43 m x 2.59 m) .

• Internal Dimensions (L x W x H): Approximately 19 ft 4 in x 7 ft 6 in x 7 ft 6 in (5.86 m x 2.24 m x 2.50 m) .

• Material: Heavy-gauge COR-TEN steel (structural frame and walls).

• Flooring: 18 mm Plywood with 1.8 mm Vinyl or Epoxy coating .

• Wall Insulation: 100 mm Thick Rock Wool (Mineral Wool) .

• Roof Insulation: 100 mm Thick Rock Wool .

• Door: 1 x Steel personnel door (approximately 3 ft x 7 ft) with cylinder lock and door closer .

• Windows: 2-3 x Sliding or fixed windows (e.g., 4 ft x 3 ft) with glazing and security bars .

• Electrical: 100A Main Panel, LED Lighting, Power Sockets (Quantity as configured) .

• Color: Commercial Green (Color-coated finish).

• Mobility: Forklift pockets integrated into base frame .

Compatibility / Intended Use
This mobile office unit is designed for a variety of professional applications across the United States. It is commonly utilized in the following sectors:

• Construction: As a site office for project managers and supervisors.

• Industrial & Manufacturing: As a secure control room or break room for staff.

• Education: As temporary classrooms or administrative annexes .

• Events: As a box office, security command post, or first-aid station.

• Agriculture: As a field office for farm operations.

Package Includes

• 1 x 20 ft Modified Steel Container Shell

• 1 x Pre-hung Steel Entry Door with Locking Mechanism

• 2 x Window Units with Integrated Security Grilles

• 1 x Pre-wired Electrical Distribution Board

• 2 x Interior LED Light Fittings

• 2 x Dual Electrical Outlets (NEMA 5-20R)

• Wall and Ceiling Insulation with Interior Cladding

• Durable Vinyl Floor Covering

• Exterior Photocell Light
